CWS Hydraulics - click here                                                    CWS Circuit - click here



Part #

Description





Order Parts

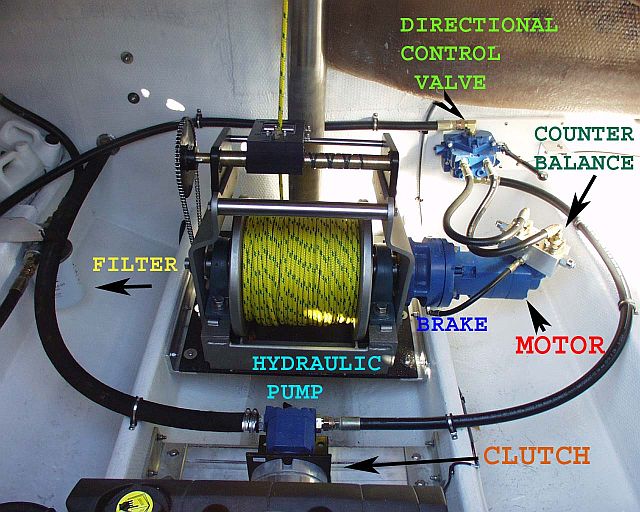

Hydraulic Parts





VA-Parker 17-65

Permco Pump

VA B068

Eskridge Brake

EBSK Eskridge Brake Kit

VA 1065-006

Char Lynn Motor

VA

Char Lynn Counter Balance (includes cartridge)

VA-Sun

Directional Control Valve

VA 12SFO

4 Bolt Flange Kit (2 Needed)



COA 13219

Clutch Mounting Bracket

COA 13394

Pitts Clutch (13 tooth spline)

SP T-5052 H32

15 Gallon Hydraulic Tank

CWS

Complete Hose and fitting Assembly



DCH CP-1280-10P-50

Filter and Filter Head

DCH CP-1282-10-50

Filter Element with O-ring

Kellogg

Control Cable TEL 03237703096









Bearings





COA 00239

Small Clutch Bearing

COA 2006

Large Clutch Bearing

R20

Winch Bearings (aluminum style/Old)

TMU-2

Winch bearings (Stainless Steel winch)

TP-6205

Level Winder Bearings (2 needed)

TP-6203

Roller Head Bearings (2 needed per roller)

McM 6354K4

Bearing Puller



TP-100

Complete Level Winder Assembly(includes all needed parts)

TP-PARA 20

Level Winder (just blocks,rollers,pawl, and side plates)

LWR1 Level Winder Roller

TP-PARA-21-2

90 degree grease fitting

TP-PARA 15

Roller Head

PARA-2 Roller Head Base
PARA - A1 Roller Head Top and Bottom Plate

TP-102

Slide Body Large

TP-PARA-14

Slide Body Small

TP-PARA 10

Side Plate W/hole

TP-PARA 11

Side Plate W/O hole

TP-106

S/S Spreader Bar (short or long)

TP-107

Pins (4 needed)

TP-PARA 18

Plastic Spacer

TP-PARA 19

Long Roller

TP-PARA 24

Short Roller

TP-PARA 13

Pawl

MK-112

Bronze Shaft (Short Or Long)

TP-PARA -23

Plastic Bushing



TP-PARA - 21-2

Zerk Fitting

TP-115

Large Bearing 6205

McM 6236K27

60 Tooth Gear

McM 62375K11

19 Tooth gear and Bushing

McM 6264K84

Stainless Chain (short ) 35 inches

McM 6264K51

Stainless Chain (Long) 41 Inches

TP-PARA 22

Stainless Steel Bolt Assembly



Stainless Steel winch

TMU

S/S winch bearings (2 needed)

TMU

Winch Bearings (Old Aluminum winch)

TMU

Stainless Steel Winch Coupler (old style)



TMU

Adaptor Ring (used with alum winch)



Mcmaster

Bronze Bushings used for alum winch



TMU

Slider Shaft





Order Parts



Roller Head and Swivel Head Custom

TP-PARA 0-A

Roller Head

TP-PARA O MOD

Mod Kit for Old Style to convert to New Style

TP-PARA 6

Horizontal Short Roller (Old Style)

TP-PARA 7

Vertical Long Roller (New and Old style)

TP-PARA 21

Roller Head Bearings for fat roller

TP-PARA -08

Roller head Bearings for short and long rollers

TP-PARA 6B

Fat Roller (New style or Mod Kit)

MK-304

Swivel Head

MK-304

Swivel Head Bearing

T-P PARA-26

Bearing Adapter

TMU

Rebuild Service (replace bearings, plastic wear items, clean)









Hydraulic Coolers

Volvo Cooler

 15415-1-7

Caterpillar Cooler

 2253-1-7

Cummins Cooler

 15655-1-7

Yanmar Cooler

 2254-3-7







Engine

 Couplers



MK-401

Merc Coupler ( for 496/454/502)

MK-402 -5

Yanmar 8LV Coupler

MK-402 Yanmar 6LP Coupler

MK-403

Volvo Coupler

MK-404

Merc 6.2 (Custom)

MK

Key and Shaft















U Joint

 Assembly



Total Assembly

W/clutch

Total Assembly

 W/out clutch



Total Assembly

 W/Slip Yoke Volvo Engine

DSH 2-2-329

Flange Yoke



DSH 2-26-497

PTO Center Yoke



DSH 5-153X

U joint (2 needed)

DSH 2-82-641

Slip Yoke Male



DSH 2-3-348

Slip Yoke Female



2-4-473

End Yoke (2 needed w/clutch)



10-4-481

13 Spline End Yoke



Broached End Yoke (old system)





Order Parts



Line Guide and Accessories

MK-305

Stainless Line Guide



MK-306

Knot Breaker

MK-307

Winch Plate









Seats and Helm Cover

Complete set of seat cushions 31

 OP 31



Complete set of seat cushions 35

 OP 35



Costa Marine

Passenger seats OP31



Costa Marine

Passenger seats OP35



Helm seat only

Helm seat only



Console cover

Console cover



Roller head Cover

Roller head Cover



Flight Deck Pad

Custom Sea Deck Flight Pad


Helm Pad OP 31
Helm Pad OP 35

Carver

Boat Cover for OP 31









Aluminum

 Deck Parts



Inflation Radar

 Arch OP 31



Inflation Radar

 Arch OP 35



New Style Arch

 With 2 Trusses for OP 31



New Style Arch

 With 2 Trusses for OP 35



Skinned top





Swim Platform

 with Fiberglass Insert



Line guide Hand

 Rail



Captain Seat

 Base



Harness Rail





Under Deck

 Supports



U.S.G.C Bow Rail

 OP31



U.S.G.C Bow Rail

 OP35





Harnesses- Aloft





Child

Red and Blue

Youth

Yellow and Grey

Adult

Blue and Yellow

Xlarge

Blue and Grey

XXLarge

Red and Grey







Doubles and Triples Bar-Sport Lite

Tandem



Triple





Props





Volvo Dou prop

G 4 ECKELS



Volvo Dou prop

G 5 ECKELS









Misc Parts





Ocean Pro

 Windshield



SEA DOG

Set of Shark Eye Lights







Lettering





Ocean Pro 31

 Stickers with waves



Parasail hull

 Lettering



Parasail hull

 2 Colors



Boat Name graphics

 (2 on Bow, 1 Stern, 1 Hailing Port)



Media in Motion

USCG Safety Stickers





Order Parts



Set of Tank Locks











Volvo Trim Tabs





Volvo Oil 5 Gallons





Volvo Duo Prop Reconditioning -











Safety Equipment





USCG Adult life

 Jackets 601T

USCG Child life

 Jackets 603T

USCG Life Ring

 W/Reflective Tape 24”

Life jacket 601-X

 Donning Placard





Fuel Tanks





Gas or Diesel

 UNCERTIFIED



Gas or Diesel Certified fuel

 Tanks (Set Of Two) OP 31



Certified OP 35

 Fuel Tank (Set of Two)



Sending Unit for

 Gauge



Hydraulic Tank

15 Gallon







ENGINES:





Volvo W/Drive





Volvo w/o drive





Cummins





Cat











TRAILERS





Float On Tri Axle

 OP 31



Float On Tri Axle

 OP 35
